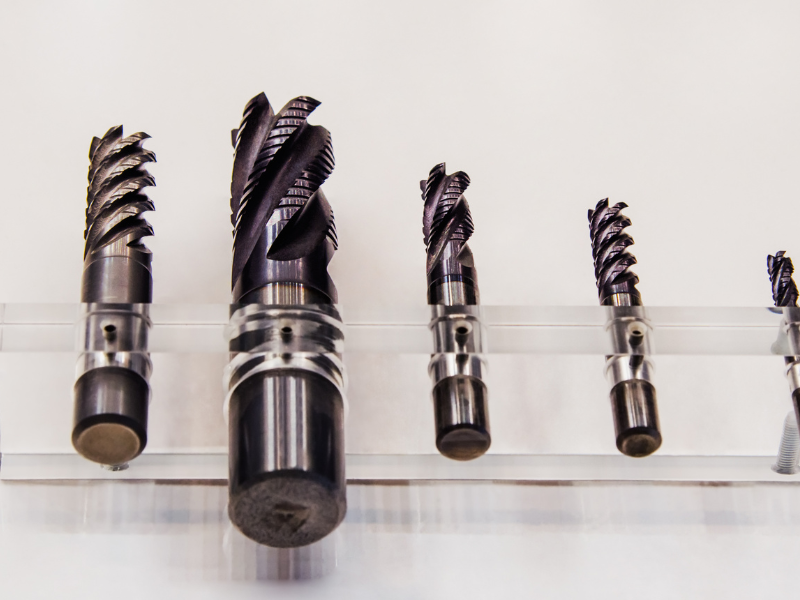

Boost Efficiency and Tool Life with High-Performance End Mills

You’ve been there—struggling with worn-out tools, inconsistent finishes, and wasted production time. Whether you’re a CNC operator or a manufacturing engineer, you know the frustration of tools that just can’t keep up with demanding jobs. That’s where high-performance end mills come into play, offering precision, durability, and efficiency to tackle even the toughest materials.

Key Takeaways

High-performance end mills are designed for precision, durability, and efficiency, ideal for demanding machining applications like aerospace or automotive industries.
Made from ultra-fine grain carbide and featuring advanced coatings like TiAlN, they offer superior heat resistance, wear reduction, and extended tool life.
Innovative geometries, such as variable helix designs and optimized flute counts, enhance chip evacuation, reduce vibrations, and improve surface finish quality.
These tools are versatile, supporting techniques like trochoidal milling and accommodating both roughing and finishing tasks with improved material removal rates.
Using high-performance end mills reduces production downtime, increases machining speed, and results in cost-effective operations over time.
Selecting the right tool, coating, and geometry based on material and application requirements ensures optimal performance and reliability.

In this article, you’ll discover what sets these advanced cutting tools apart. From material composition and innovative geometries to specialized coatings and optimal feeds and speeds, we’ll break down the key factors that make high-performance end mills a game-changer. If you’re looking to reduce downtime, improve surface quality, and maximize productivity, this is the guide for you.

What Are High Performance End Mills?

High-performance end mills are precision tools designed for demanding machining applications in CNC operations. They excel in delivering consistent results, even when cutting tough materials like stainless steel, titanium, and hardened alloys. These tools increase machining efficiency through advanced features and engineering.

Key Characteristics of High-Performance End Mills

Material Composition

Most high-performance end mills are made from ultra-fine grain carbide, offering superior hardness and wear resistance. Solid carbide grades improve stiffness, allowing precise cuts at higher speeds compared to traditional HSS tools.

Innovative Coatings

Coatings like TiAlN (titanium aluminum nitride) enhance heat resistance and lubricity. These coatings minimize tool wear by reducing friction, especially in high-speed machining environments. For example, TiAlN-coated tools often extend tool life by over 20%.

Design Features

Advanced designs often include increased flute counts for smoother cuts, optimized chip evacuation, and better surface finish quality. Tools with a corner radius reduce stress concentrations during machining, lowering the chances of tool breakage.

Precision Geometry

High-performance end mills use refined geometries for techniques like trochoidal milling. They maintain tight tolerances when maximizing material removal rates without sacrificing surface finishes.

Versatility in Machining Parameters

The axial depth of cut (ADOC) and radial engagement can be pushed higher with these tools, improving cycle times in CNC operations. This is critical for industries requiring consistent output like aerospace and automotive.

Benefits of Using High-Performance End Mills

Tool Life Optimization

Extended tool life reduces tooling costs. Precise construction and compatible coatings lead to fewer tool replacements over time, enhancing work efficiency.

Higher Productivity

These tools enable higher feed rates and spindle speeds, lowering production cycle times. In one case, manufacturers noted a 30% shorter cycle time using coated carbide end mills.

Enhanced Surface Finish

Tools designed for smoother chip flow and optimal cutting angles ensure finished parts maintain precision and quality.

Reliable Performance in Tough Conditions

With robust material properties, they handle challenging materials while retaining sharpness, improving durability during continuous machining.

Key Features Of High Performance End Mills

High-performance end mills are designed to enhance machining accuracy and efficiency in demanding applications. Their advanced features offer improved material removal rates, extended tool life, and superior surface finish quality.

Material Composition

Material composition directly influences cutting performance.

Ultra-fine grain carbide: High-performance end mills commonly use ultra-fine grain carbide for its exceptional hardness and toughness. This material resists wear even in high-speed machining, especially with materials like titanium and hardened steels.
Solid carbide grades: Advanced solid carbide grades ensure higher heat tolerance and reduce breakage during heavy applications.
Coatings: TiAlN coating is often applied to minimize heat buildup and friction, improving both tool life and cutting performance. For instance, TiAlN-coated tools typically last 30%-50% longer compared to uncoated options in high-temperature environments.

Opt for tools with fine carbide grain structures and high-quality coatings to optimize tool life when machining demanding materials.

Cutting Precision

Precision is critical for consistent results and superior finishes.

Refined geometries: Features like a higher flute count and optimized corner radius improve chip control and reduce chatter during cutting.
Flute design: High flute counts (e.g., 5 or more flutes) excel in finishing operations by producing finer surface textures, while lower flute counts (2-4) are ideal for roughing due to efficient chip evacuation.
Trochoidal milling compatibility: Advanced designs optimized for trochoidal milling allow higher axial depth of cut and radial engagement without overloading the tool, boosting productivity significantly in CNC operations.

Select end mills with specific geometries for precise applications, such as finishing or roughing, to achieve better accuracy.

Durability And Longevity

Invest in end mills that resist wear and extend operational reliability.

Heat resistance: TiAlN coatings enhance durability by withstanding elevated temperatures, particularly in high-speed machining.
Toughness: Ultra-fine grain carbide construction withstands mechanical stress and prevents fractures.
Extended wear life: Features like optimized corner radius and specialized coatings contribute to prolonged tool life by balancing strength and wear resistance.

To avoid premature tool failure, ensure the end mill's specifications align with your material and application. For example, using a coated carbide end mill on stainless steel can result in a longer tool life and higher output consistency.

Types Of High Performance End Mills

High-performance end mills come in various configurations designed to meet specific machining needs. Understanding the types available helps you make informed decisions for CNC tool selection.

Carbide End Mills

Carbide end mills are highly durable, offering superior performance in high-speed machining. Constructed from ultra-fine grain carbide, these tools withstand wear and maintain cutting precision under intense conditions.

Tool life optimization: Ultra-fine grain carbide increases tool longevity by up to 50% compared to standard materials.
Applications: Ideal for machining hard metals like stainless steel or titanium in industries like aerospace and defense.
Actionable tip: Use solid carbide end mills for trochoidal milling techniques to achieve higher axial depth of cut and sustained radial engagement.

Avoid selecting general-purpose tools when working with tough materials; they compromise both tool life and the quality of machined surfaces.

Coated End Mills

Coated end mills use advanced surface treatments to reduce friction, improve heat resistance, and enhance tool performance. TiAlN coatings are among the most common for high-performance applications.

Performance gains: TiAlN-coated tools can improve cutting efficiency by up to 30% due to reduced heat buildup during high-speed machining.
Surface finish quality: Coatings minimize wear, delivering smoother finishes even in aggressive operations.
Tip: Match your coating to material requirements. For example, TiAlN performs best with ferrous metals, while aluminum needs ZrN for optimal results.

Skipping the correct coating often leads to overheating, causing premature tool failure or workpiece damage.

Variable Helix End Mills

Variable helix end mills offer enhanced stability by reducing vibrations during cutting processes. These tools are designed to improve material removal rates while maintaining precision.

Benefits of variability: Irregular flute counts reduce harmonic resonance, boosting accuracy and extending tool life.
Case example: CNC operators machining aluminum with variable helix tools reported 20-40% faster material removal rates without surface imperfections.
Usage tip: Combine variable helix designs with a small corner radius to avoid chipping during roughing operations.

Using end mills with consistent helix angles in demanding tasks increases chatter, reducing efficiency and compromising tool life.

Benefits Of Using High Performance End Mills

High-performance end mills deliver precision and efficiency, optimizing machining outcomes in demanding applications. Their advanced features contribute to enhanced productivity, superior surface finish, and reduced operational costs.

Improved Efficiency

High-performance end mills increase machining efficiency by minimizing cycle times and improving material removal rates. Their compatibility with high-speed machining enables faster operations while maintaining precision.

Geometry and Design: Features like variable helix angles and multiple flute counts improve chip evacuation and reduce vibrations, ensuring smoother and faster operations. For example, a 4-flute carbide end mill often balances material removal and stability, whereas 6-flute designs perform better in finishing.
Material Composition: Tools made from ultra-fine grain carbide provide hardness and durability, essential for efficient machining in tough materials like stainless steel and titanium.
Advanced Coatings: TiAlN coatings enhance efficiency by reducing heat buildup and friction, allowing for prolonged machining at higher speeds.

Tip: Match the flute count and tool geometry to material type and speed parameters to avoid common inefficiencies. For instance, avoid using high-flute-count tools in low-speed scenarios to prevent poor chip evacuation.

Enhanced Surface Finish

Precision machining requires tools capable of delivering consistent, high-quality surface finishes. High-performance end mills achieve this with refined geometries and innovative technologies.

Corner Radius: End mills with a consistent corner radius minimize edge breakage and create smooth transitions between surfaces, reducing the chance of machining marks.
Optimal Flute Designs: Proper flute count and spacing improve chip control, preventing scratches or surface imperfections. For instance, variable helix end mills improve surface finishes by reducing harmonic vibrations during cutting.
Trochoidal Milling Techniques: These tools excel in higher axial depth of cut, reducing stress on the cutting edge and leading to uniform finishes.

Avoid: Using mismatched tools for material hardness or geometry increases surface roughness and damages part integrity.

Cost-Effectiveness Over Time

Despite higher initial investments, high-performance end mills result in lower operational costs through extended tool life and improved outcomes.

Tool Life Optimization: Ultra-fine grain carbide and advanced solid carbide grades enhance wear resistance, increasing tool life by up to 50% in some cases compared to standard tools.
Reduced Downtime: Reliable durability and fewer tool changes lead to higher production efficiency. For example, end mills with TiAlN coatings reduce wear during prolonged high-speed machining, minimizing interruptions.
Material Utilization: Improved accuracy reduces material waste, ensuring cost savings over time.

Examples: A CNC operator using tools tailored for specific material hardness often sees significant reductions in overall machining expenses due to fewer reworks and replacement costs.

Recommendation: Focus on precise CNC tool selection and re-evaluating standard practices to maximize cost-effectiveness without compromising performance.

Factors To Consider When Choosing High Performance End Mills

Selecting the right high-performance end mills directly impacts machining efficiency, tool life, and surface finish quality. Focus on key considerations to ensure optimal CNC performance.

Application Requirements

Match the end mill to your specific machining tasks for the best results. Common applications like roughing and finishing demand tools with specific properties.

Roughing Operations: Use carbide end mills with larger flute counts and durable coatings like TiAlN coating to handle higher material removal rates. These tools resist heat buildup and wear during heavy-duty tasks.
Finishing Tasks: End mills with refined geometries and corner radius designs improve surface finish quality. They're ideal for achieving precision and fine details.
Specialized Techniques: For high-speed machining or trochoidal milling, select tools with advanced solid carbide grades and ultra-fine grain carbide construction to maximize efficiency and minimize friction.

Overlooking application requirements can lead to subpar results, including tool failure and compromised finishes.

Material Compatibility

High-performance end mills must match the material being machined to achieve consistent performance and tool life optimization.

Hard Materials: Stainless steel and titanium require tools with TiAlN coatings, as these enhance heat resistance and durability during prolonged cutting.
Soft Materials: For materials such as aluminum, end mills should feature sharp edges and polished flutes to prevent material sticking and build-up.
Composite Materials: Variable helix designs help reduce vibrations while maintaining clean cuts in abrasive materials.

Incompatibility between material and tool can cause chatter and rapid wear.

Tool Geometry

Tool geometry affects chip control, cutting performance, and surface finish quality. Geometry includes flute count, axial depth of cut, and corner radius.

Flute Count: Higher flute counts are preferable for finishing operations, ensuring smoother surfaces, while lower flute counts are suited for roughing tasks to enhance chip evacuation.
Axial Depth of Cut: Maximizing axial depth when geometry aligns with material properties increases machining efficiency without overloading the tool.
Corner Radius: Corner radius designs reduce stress at the cutting edge, which boosts tool longevity and prevents chipping.

Ignoring geometry details leads to poor performance and reduced efficiency.

Popular Brands And Models Of High Performance End Mills

Selecting the right brand and model ensures consistent performance, particularly in high-speed machining and demanding applications. Below are some leading brands and their high-performance offerings, known for durability and precision.

1. Harvey Tool

Specializes in miniature carbide end mills suitable for intricate applications.
Offers tools with ultra-fine grain carbide for improved hardness and TiAlN coatings for heat resistance.
Ideal for enhancing surface finish quality on small components.

2. Kennametal

Provides robust solutions with solid carbide grades for heavy-duty tasks.
Known for variable helix end mills that reduce vibrations, improving chip evacuation and tool life optimization.
Recommended for industries requiring deep axial depth of cut, such as aerospace.

3. YG-1

Produces advanced high-speed machining tools with optimal flute counts for different materials.
Features refined geometries to support accurate trochoidal milling, especially in titanium and stainless steel.

4. OSG

Delivers end mills with corner radius designs for smooth finishes on hard-to-machine metals.
Includes coatings like TiAlN to handle extreme heat generated during prolonged use.

5. Walter Tools

Offers tools designed for both roughing and finishing with high cutting precision.
Focuses on tool life improvement through innovative geometrics and durable materials.

Actionable Tips For CNC Tool Selection

Match the flute count to your machining technique; higher counts work well for finishing.
Use tools with a corner radius when transitioning between roughing and finishing to improve longevity.
Opt for TiAlN-coated models when dealing with high temperatures during long machining cycles.

Conclusion

High-performance end mills are a game-changer for demanding machining applications, offering unmatched precision, durability, and efficiency. By investing in the right tools, you can tackle tough materials, reduce downtime, and achieve superior surface finishes with ease.

Selecting the right end mill tailored to your specific needs ensures consistent results while optimizing productivity and reducing long-term costs. With advanced designs, innovative coatings, and refined geometries, these tools empower you to meet the most challenging machining demands confidently.

Frequently Asked Questions

What are high-performance end mills?

High-performance end mills are precision cutting tools designed for demanding machining applications. They are made using ultra-fine grain carbide and feature advanced geometries and coatings. These features provide enhanced durability, improved cutting efficiency, and superior surface finishes, making them ideal for working with tough materials like titanium and stainless steel.

Why should I use high-performance end mills?

High-performance end mills offer several advantages, including extended tool life, reduced cycle times, enhanced surface quality, and improved productivity. Despite their higher upfront cost, they minimize downtime and lower overall machining costs, making them a cost-effective choice for precision machining.

What are the key features of high-performance end mills?

Key features include ultra-fine grain carbide construction, heat-resistant coatings like TiAlN, advanced geometries for better chip control, and refined flute designs. These features enhance tool performance, improve material removal rates, and allow for reliable use in both finishing and roughing applications.

What materials are high-performance end mills best suited for?

High-performance end mills are ideal for cutting tough materials like stainless steel, titanium, and hardened alloys. Their durability and precision make them perfect for applications in industries like aerospace, automotive, and medical device manufacturing.

How do variable helix end mills reduce vibrations?

Variable helix end mills reduce vibrations through uneven helix angles that distribute cutting forces more evenly. This minimizes chatter, improves surface finishes, and boosts overall machining precision and stability.

What coatings are commonly used on high-performance end mills?

TiAlN (Titanium Aluminum Nitride) is a popular coating for high-performance end mills. It enhances heat resistance, reduces friction, and increases tool life, making it highly effective for high-speed machining and challenging materials.

Are high-performance end mills cost-effective?

Yes, high-performance end mills are cost-effective in the long run. Their durability, precision, and ability to reduce cycle times lead to lower operating costs, despite their higher initial investment, by minimizing downtime and improving machining efficiency.

How can I choose the right high-performance end mill for my application?

To pick the right end mill, consider the material being machined, the type of operation (roughing or finishing), tool geometry, and flute count. For high-temperature applications, opt for TiAlN-coated tools, and for roughing, choose tools with larger flute counts and sturdy geometries.

What industries commonly use high-performance end mills?

Industries like aerospace, automotive, and medical manufacturing rely heavily on high-performance end mills. Their ability to handle challenging materials and deliver precise finishes makes them essential for advanced machining operations.

What are some recommended brands for high-performance end mills?

Popular brands include Harvey Tool, Kennametal, YG-1, OSG, and Walter Tools. These manufacturers are known for producing durable and precise tools designed to excel in high-speed machining and demanding applications.
