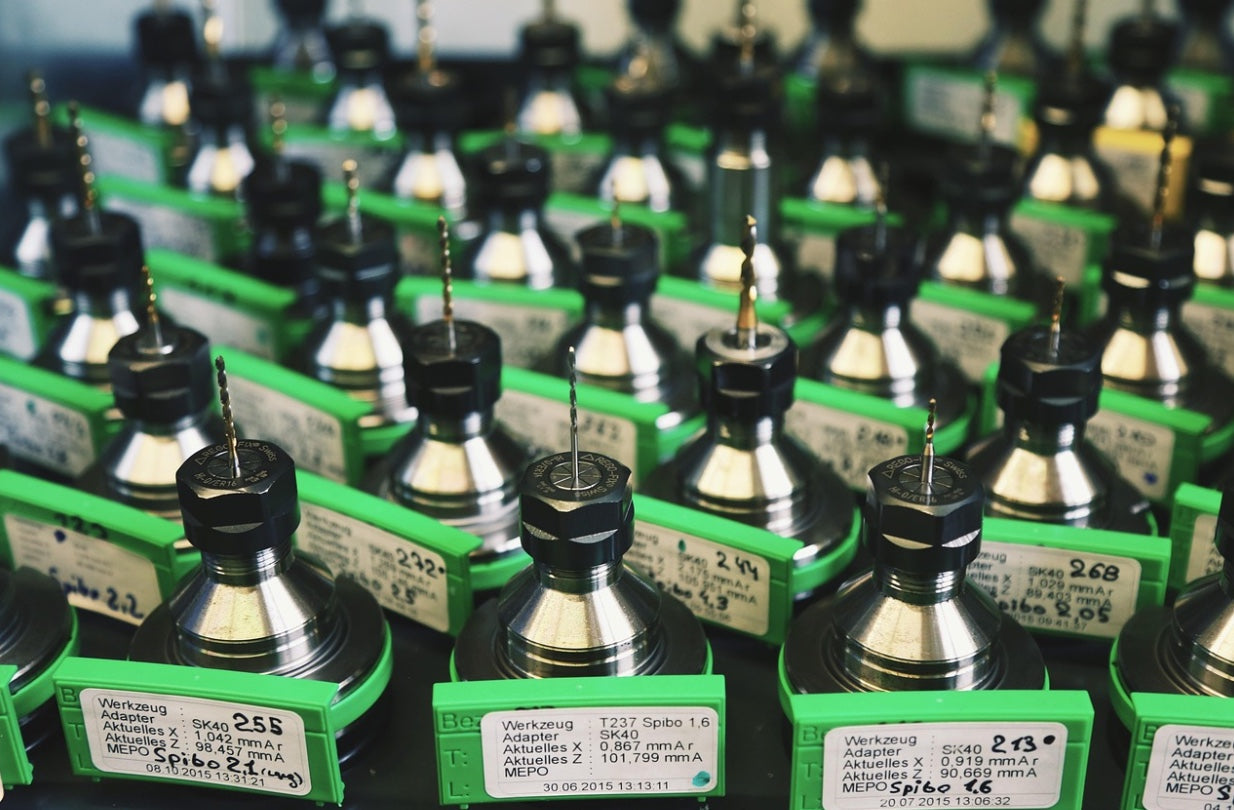

Corner Chamfer End Mills: When to Use Them and Why Machinists Rely on Edge Breaks

A sharp, perfect 90° corner looks great on a CAD model. On a real part, it’s a liability. Burrs snag gloves, edges chip in transit, and sharp corners concentrate stress. That’s why so many shops default to a small, controlled chamfer right off the machine—no benching marathon required. Enter corner chamfer end mills: square-end profiles reinforced with a small bevel that cuts cleanly and quietly solves half your finishing headaches.

Key Takeaways

• A corner chamfer end mill strengthens the tool tip and helps prevent edge chipping on the part.



• “Break edges” notes on drawings are satisfied efficiently with a light chamfer, often faster than hand deburring.



• Use chamfers to control burrs, reduce handling risk, and manage stress risers on high-cycle parts.



• Pick geometry by material: fewer flutes and polished flutes for aluminum; more flutes and heat-resistant coatings for steels.



• Program chamfer passes with constant tool load, climb milling, and a verified projection depth to avoid double-cutting.



• Keep a shop-standard chamfer size (e.g., 0.010–0.020 in / 0.25–0.50 mm) unless the print specifies otherwise.



Why Edge Breaks Matter More Than You Think

Burrs aren’t just cosmetic. They can trap debris, interfere with assembly, and act as initiation points for cracks. Research programs focused on automated deburring underline just how persistent burrs are across machining processes—hence the push to control them at the spindle instead of at the bench.

When a drawing says “break sharp edges,” it’s authorizing you to remove sharpness without obsessing over an exact chamfer dimension. Engineering standards and training materials spell this out, describing edge-break notes that allow a small chamfer or radius when size isn’t critical. That’s exactly the window where corner chamfer end mills shine.

You’ll also see formal standards for representing edge conditions. ISO 13715, for example, defines how “edges of undefined shape” (including “break sharp edges”) are indicated so machinists can apply a controlled chamfer or radius. In practice, adopting a standard chamfer size reduces ambiguity and speeds programming.

What a Corner Chamfer End Mill Actually Does

A corner chamfer end mill is basically a square-end tool with a small bevel replacing the razor-sharp outer corner. That bevel distributes load, improves tool durability, and gently breaks the part edge during the finish pass. If you routinely see tiny chips at square edges—or find yourself scrubbing parts with a deburring tool—this geometry saves real time.

For quick sourcing or to compare diameters, flute counts, and coatings, see the in-stock corner chamfer end mill collection. You’ll notice common combinations like 4–5 flutes for steels and high-temp alloys, with hard PVD coatings to handle heat and abrasion.

Edge-breaks aren’t just about safety. They also limit stress risers. Sharp outer corners concentrate stress; a tiny chamfer spreads it. Many aerospace and research shops even codify “remove all burrs and break sharp edges” in their fabrication practices for reliability and cleanliness, which mirrors what you’ll see in many internal shop standards.

When to Choose a Corner Chamfer End Mill Over Other Options

1) The print says “Break Edges” (but doesn’t spec a dimension)

If a drawing note simply says “break all sharp edges,” a small chamfer is the fastest, most consistent answer. You can program a perimeter pass with a chamfer tool and come off the machine with parts that are safe to handle and ready for downstream operations—no extra queue at the deburr bench. (Standards-focused explanations of this note support exactly that intent.)

2) You need to reinforce tool corners in tougher materials

Square corners on a standard end mill are the weak point. The tiny chamfer strengthens the cutting edge, especially on interrupted cuts, narrow walls, or when slotting steels. It’s why many shops keep a few chamfered tools in their steel and titanium drawers—and reserve sharp-cornered tools for light finishing only.

3) You’re chasing consistency at scale

Manual deburring is skilled work, but it’s hard to keep identical edge breaks across hundreds of parts. A toolpath-driven chamfer sets the size, location, and surface finish so QA stays bored—in a good way. If you run a lot of aluminum housings or face-milled plates, put the chamfer in your post-op macro and stop fighting variation.

For background on burr formation and why it pays to “design out” hand finishing time, university machining lectures and gov-sponsored research both emphasize inspecting/removing sharp edges as a standard process step.

Geometry, Materials, and Coatings That Make the Difference

Aluminum and other non-ferrous materials

Use fewer flutes (often 3) with generous chip space and polished flutes to keep chips moving. For a deeper dive on choices that help with chip evacuation and built-up edge in aluminum, this guide to end mills for aluminum and non-ferrous materials breaks down flute count and geometry at a glance.

If your parts are almost all 6061/7075, review aluminum-focused selection advice—helix angle, coating, and chip evacuation affect how “clean” the chamfer emerges without smear. A quick primer on choosing the best end mills for aluminum explains those trade-offs in practical terms.

Steels, stainless, and high-temp alloys

Go up in flute count to spread load and choose heat-resistant coatings (e.g., AlCrN or similar) that retain hardness under temperature. If you’re standardizing SKUs, a reference on end mill coatings highlights why certain PVD films survive abuse better in steel while uncoated or polished tools stay cleaner in soft alloys.

Chamfer size selection

Unless the drawing says otherwise, most shops default to a modest edge break—about 0.010–0.020 in (0.25–0.50 mm) for general work. The trick is consistency: pick a value, program it, and measure it in your first-article. When the print specifies an edge condition per ISO 13715 or calls out a true dimensioned chamfer, hit the number and document your inspection method.

For quick comparisons across stocked sizes, the corner chamfer end mill category lists common diameters and beveled edge options that pair well with everyday shop standards.

Programming and Process Tips That Pay Off

Keep tool load constant

Avoid plunging a chamfer tool deep into tight inside corners where feedrate drops spike the load. A contour pass with smooth lead-ins/lead-outs maintains chip thickness and avoids dwell marks.

Climb mill your chamfer

Climb milling keeps chips thin at exit, which helps the edge look “cut” rather than smeared—especially in aluminum. Combine this with a light radial engagement and a consistent feed per tooth for crisp lines.

Control the projection depth

Double-cutting is a common cause of wash-out and shiny facets. Verify your tool length and projection so the chamfer diameter clears adjacent features. A small post-processor macro that sets a standard Z-offset for your chamfer tools reduces setup mistakes on repeat jobs.

Verify with a simple gage

A 60° pocket gage or a dedicated chamfer checker speeds first-article approval. If QC wants a number (even on “break edges” jobs), agree on a proxy measurement—often the measured flat width at the top face—so inspection stays quick. Many aerospace shops formalize “remove burrs and break sharp edges” with clear workmanship notes you can echo on your router.

For a quick refresher on the role of chamfering and deburring in process planning—and why it’s worth baking into CAM templates—manufacturing notes emphasize checking for sharp edges/burrs as a standard step before sign-off.

When a Chamfer Isn’t the Right Move

• Print calls for a radius. Some assemblies prefer a small radius for fit or fatigue reasons. If ISO 13715 or a model-based definition clearly indicates a radius, don’t substitute a chamfer.



• Aesthetic edge blending. Consumer-facing surfaces often look better with a radial break. Switch to a corner-radius or a dedicated radius toolpath.



• Sealing surfaces. Gasket lands and O-ring grooves usually need clean transitions; confirm with engineering before adding any edge break.



If you want a concise overview to hand to a trainee, this post on what a corner chamfer end mill is and where it’s useful covers the fundamentals in plain language.

Sourcing Corner Chamfer End Mills (Without Guesswork)

If you standardize a few SKUs—say, 3/8", 1/2", and 3/4" bodies with chamfers tuned for your common materials—you’ll move faster. Keep one aluminum-biased tool (fewer flutes, polished geometry) and one steel-biased tool (more flutes, heat-resistant coating) at each size. That cuts changeovers and gives programmers reliable feeds/speeds to reuse.

When you need to restock or compare specs, the general end mills catalog is a quick index by corner style, flute count, and series, so you can keep chamfered tools next to your square, radius, and ball-nose inventory.

FAQs

How big should a “break edge” chamfer be if the print doesn’t say?

Most shops default to 0.010–0.020 in (0.25–0.50 mm). The key is consistency—pick a value and document it in your setup sheet so inspection knows what to expect. Reference standards for indicating edges of undefined shape back up using a controlled, repeatable break. (ISO)

Do corner chamfer end mills replace a dedicated chamfer mill?

Not always. Corner-chamfered square end mills are great when you also need to finish walls/floors and lightly break the edge in one tool. For deep countersinks or large, visible chamfers, a dedicated chamfer mill (often 45°) is cleaner and faster.

What flute count should I start with in aluminum vs. steel?

Aluminum: 3 flutes with polished flutes for chip evacuation. Steel/stainless: 4–5 flutes with heat-resistant coatings to handle higher temperatures. If you’re stocking for mixed work, keep at least one option for each family.

Is a chamfer always better than a radius for fatigue life?

No. Both reduce stress concentration compared to a sharp edge, but some fatigue-critical parts prefer a small radius. Follow the print; if the spec references ISO 13715 or a dimensioned edge feature, hit the requirement.

How do I program feeds and speeds for the chamfer pass?

Start with your finish-pass chip load and reduce radial engagement so the tool is skimming, not digging. Use climb milling, keep feed smooth through corners, and avoid dwell. Consistent tool load yields a cleaner, more uniform chamfer.

Can a chamfer pass reduce bench deburring time meaningfully?

Yes. Studies and government-funded projects on deburring exist because burrs are pervasive; cutting a controlled chamfer in-process reduces the need for manual touch-ups and makes edges safer to handle.

What inspection method works best for verifying a break edge?

If the chamfer isn’t dimensioned, agree with QA on a proxy like measuring the flat width with a pocket gage or optical comparator. Many aerospace workmanship documents require removal of burrs and breaking sharp edges; matching that language on your router helps audits
